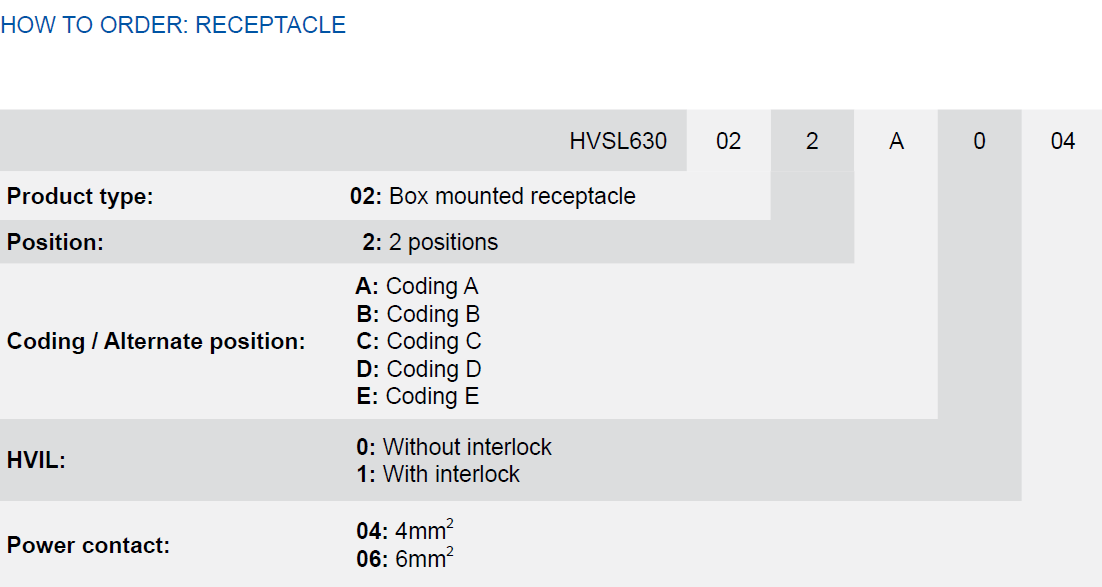

HVSL630022XXXX
part number:
HVSL630022XXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
32A 40A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
voltage:
1000V
DESCRIPTION

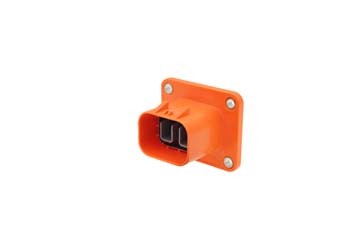

BOX MOUNTED RECEPTACLE, 120A MAX, 2 +2 (HVIL) PIN, ALTERNATE POSITION A/B/C/D/E

RATED CURRENT:

40A@6MM2 SHIELDED CABLE
32A@4MM2 SHIELDED CABLE
