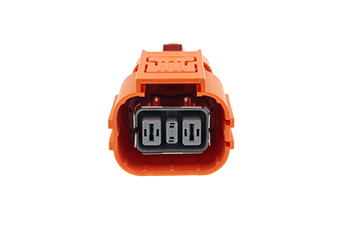

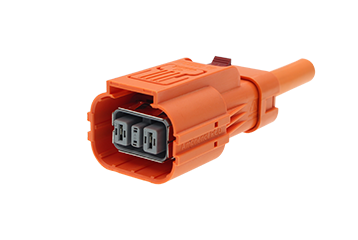

HVSL630 2 PIN PLUG
part number:
HVSL630062XXXXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
32A 40A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
series:
hvsl
voltage:
1000V
DESCRIPTION
PLUG, 2 PIN,  40A MAX, ALTERNATE POSITION  A/B/C/D/E

RATED CURRENT:

40A@6MM2 SHIELDED CABLE
32A@4MM2 SHIELDED CABLE
