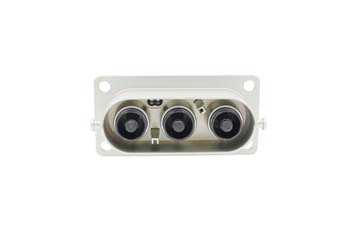

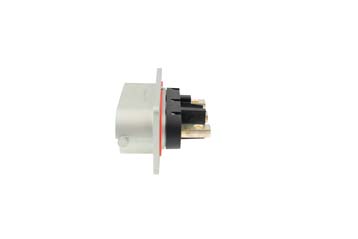

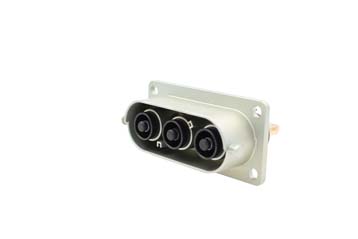

HVSLS600 3 PIN RECEPTACLE

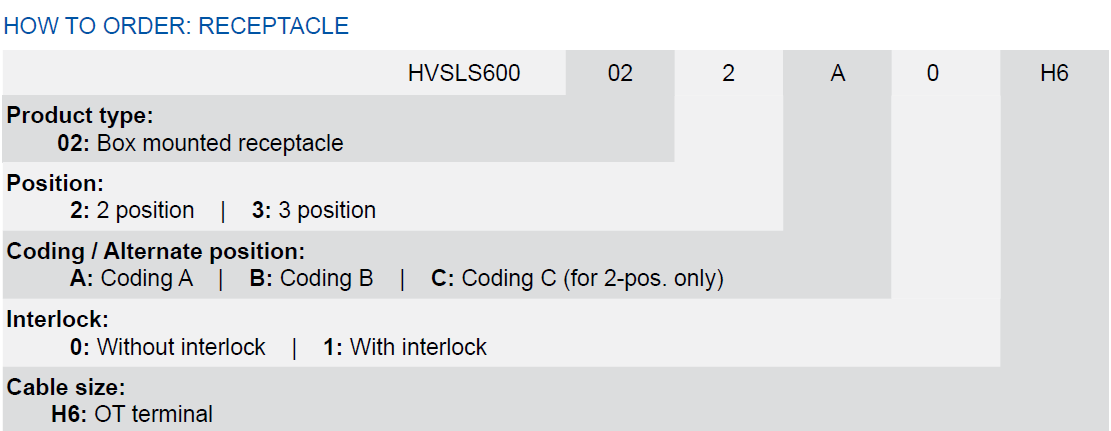

part number:
HVSLS600023XXH6
datasheet:
  view / download
specifications:
connection:
bus bar
current:
120A
housing:
metal
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
3
product type:
power connector
series:
hvsl
voltage:
1000V
DESCRIPTION


BOX MOUNTED RECEPTACLE, 120A MAX, 3 PIN, ALTERNATE POSITION A/B, HVIL, OT TERMINAL, M6

RATED CURRENT:

120A@25MM2 SHIELDED CABLE
